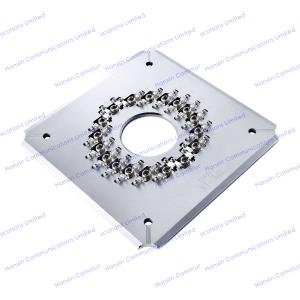

German Steel Fiber Optic Polishing Plate 18 Connectors One Times 1.1kg
The fiber polishing fixture is IPC Structure, Independent compression of each connector. This fiber polishing fixture is high stability and good surface quality.fiber polishing fixture using high quality steel with heated treat, the hardened steel S2316 provide long service life. This fiber polishing fixture can be designed with the jig of SC, FC, ST, LC, MPO and E2000, FA, etc, and also according to the customer request.
Specifications

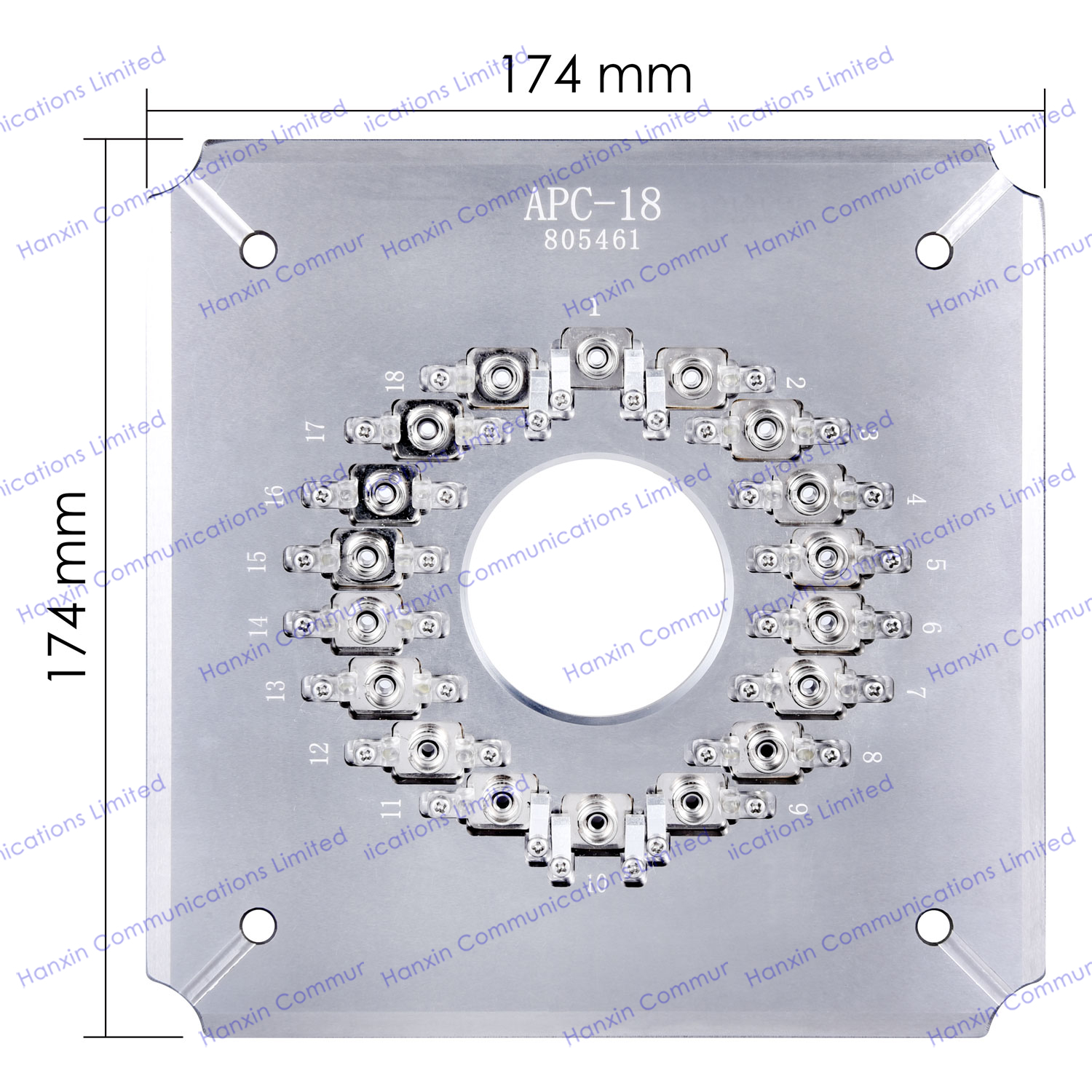

| 1. Machine Size | 174*174MM |
| 2. Net Weight | 1.1kg |
| 3. Capactiy | 18 connectors one times |
| 5. Application | FCAPC connector polishing |
| 6. Suitable Machine | Four corner pressure polisher and SEIKOH GIKEN SFP-550 Serials |
| 7. Materials | German steel |
Features
1. high quality steel construction, high precision.
2.The interference rate is over 90%.
3., the use of independent afterburner way to eliminate the grinding head of different length of exposure on the impact of grinding.
4. each grinding disc can be fitted with a plurality of grinding heads (centers 8-12, four horns, 18-24 heads), and the production efficiency is high.
5. adapters interchangeable to extend the service life of the grinding disk.
6., three kinds of grinding heads, SC/PC, FC/PC, ST/PC, interchangeable. The utility model saves the number of the grinding disk and saves the production cost.
7., grinding can be integrated grinding disk, also suitable for rework.
8., according to customer requirements design, APC, MPO, E2000, MTP, MPX and so on.
Packaging
EPE and carton packaging
All polishing jigs are 100% tested before shipment .
